Neodymium Iron Boron motor magnet segment from China manufacturer - Ningbo Xinqi Precision Magnetism Steel Co., Ltd

Neodymium Iron Boron motor magnet segment

Price:	0.01~15.0 USD
Payment Terms:	T/T,L/C;Paypal
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Air;Express Way

Packing: box,carton,pallet

Application: Motor Magnet

Type: Permanent

Brand Name: Xinqi Magnet

Composition: Neodymium

Place of origin: Ningbo

Coating thickness: 10-20um

Production Capacity: 800Tons/Year

Delivery Date: 10-25 days

Shape: Segment

Composite: NdFeB Magnet

Surface treatment: Nickle

Model No: N33-N52,M,H,SH,UH,EH

Lead time: 15-20days

Certification: ISO/TS 16949

Segment magnets are widely used in Motors, for Neodymium Iron Boron, the material are mostly used SH\Hmaterial.

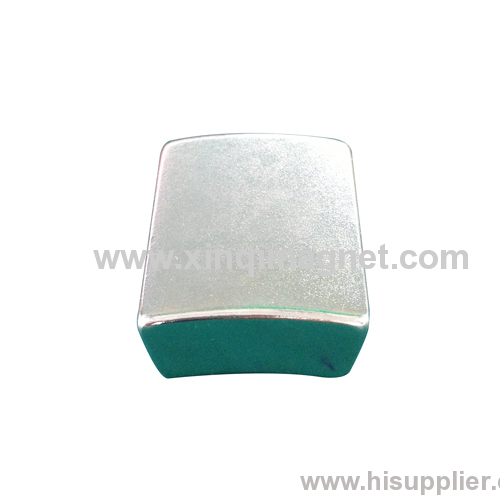

Neodymium Iron Boron magnet big segment motor magnet 45H Nickle plating

Sintered Neodymium magnets are the most powerful permanent magnetic materials available at present, they possessing high energy ranging from 31 MGOe to 53MGOe and wonderful coercive force. As the third generation of the Rare Earth permanent Neodymium magnets, Neodymium magnets are less brittle than SmCo magnet.

<a FCK__AnchorC" name="OLE_LINK9">Neodymium magnets also known as NdFeB magnets are the third generation of rare earth permanent magnets, they are composed of Neodymium, Iron, Boron and a few transition metals. Neodymium magnets have high remanence, high coercive force, high energy product and high performance. Currently Neodymium magnets are the strongest magnets available in the world.

Neodymium Iron Boron magnet big segment motor magnet 45H Nickle plating

Neodymium Iron Boron magnet big segment motor magnet 45H Nickle plating

Features:

1) Segment motor magnet Neodymium Iron Boron
2) Size:R*r*W*H*L
3) Grade: 45H
4) Coating: Nickle(≥15um)
5) Magnetized through diameter
6)Excellent demagnetization resistance capability.
7)ISO/TS16949 passed

Packing:
Inner packing: small white box, plack plastic between each magnet
Outer packing: Carton with OPP bag

Properties:

			(Hcb)		(Hcj)		(BH)max		Max Working
Grade	mT	kGs	kA/m	kOe	kA/m	kOe	kJ/m³	MGOe	Tempt(TW)℃
N35	1170-1220	11.7-12.2	≥868	≥10.9	≥955	≥12	263-287	33-36	80℃
N38	1220-1250	12.2-12.5	≥899	≥11.3			287-310	36-39
N40	1250-1280	12.5-12.8	≥907	≥11.4			302-326	38-41
N42	1280-1320	12.8-13.2	≥915	≥11.5			318-342	40-43
N45	1320-1380	13.2-13.8	≥923	≥11.6			342-366	43-46
N48	1380-1420	13.8-14.2	≥923	≥11.6			366-390	46-49
N50	1400-1450	14.0-14.5	≥796	≥10.0	≥876	≥11	382-406	48-51
N52	1430-1480	14.3-14.8	≥796	≥10.0	≥876	≥11	398-422	50-53	100℃
35M	1170-1220	11.7-12.2	≥868	≥10.9	≥1114	≥14	263-287	33-36
38M	1220-1250	12.2-12.5	≥899	≥11.3			287-310	36-39
40M	1250-1280	12.5-12.8	≥923	≥11.6			302-326	38-41
42M	1280-1320	12.8-13.2	≥955	≥12.0			318-342	40-43
45M	1320-1380	13.2-13.8	≥995	≥12.5			342-366	43-46
48M	1370-1430	13.7-14.3	≥1027	≥12.9			366-390	46-49
50M	1400-1450	14.0-14.5	≥1033	≥13.0			382-406	48-51	120℃
35H	1170-1220	11.7-12.2	≥868	≥10.9	≥1353	≥17	263-287	33-36
38H	1220-1250	12.2-12.5	≥899	≥11.3			287-310	36-39
40H	1250-1280	12.5-12.8	≥923	≥11.6			302-326	38-41
42H	1280-1320	12.8-13.2	≥955	≥12.0			318-342	40-43
45H	1320-1360	13.2-13.6	≥963	≥12.1			326-358	41-46
48H	1370-1430	13.7-14.3	≥995	≥12.5			366-390	46-49	150℃
35SH	1170-1220	11.7=12.2	≥876	≥11.0	≥1592	≥20	263-287	33-36
38SH	1220-1250	12.2=12.5	≥907	≥11.4			287-310	36-39
40SH	1250-1280	12.5=12.8	≥939	≥11.8			302-326	38-41
42SH	1280-1320	12.8=13.2	≥987	≥12.4			318-342	40-43
45SH	1320-1380	13.2=13.8	≥1003	≥12.6			342-366	43-46	180℃
28UH	1040-1080	10.4=10.8	≥764	≥9.6	≥1990	≥25	207-231	26-29
30UH	1080-1130	10.8=11.3	≥812	≥10.2			223-247	28-31
33UH	1130-1170	11.3=11.7	≥852	≥10.7			247-271	31-34
35UH	1170-1220	11.7=12.2	≥860	≥10.8			263-287	33-36
38UH	1220-1250	12.2=12.5	≥876	≥11.0			287-310	36-39
40UH	1250-1280	12.5=12.8	≥899	≥11.3			302-326	38-41	200℃
28EH	1040-1080	10.4=10.8	≥780	≥9.8	≥2388	≥30	207-231	26-29
30EH	1080-1130	10.8=11.3	≥812	≥10.2			223-247	28-31
33EH	1130-1170	11.3=11.7	≥876	≥11.0			247-271	31-34
35EH	1170-1220	11.7=12.2	≥876	≥11.0			263-287	33-36
38EH	1220-1250	12.2=12.5	≥899	≥11.3			287-310	36-39
28AH	1040-1080	10.4=10.8	≥787	≥9.9	≥2624	≥33	207-231	26-29	230℃
30AH	1080-1130	10.8=11.3	≥819	≥10.3			223-247	28-31
33AH	1130-1170	11.3=11.7	≥843	≥10.6			247-271	31-34

Company culture:

In the workshop of Xinqi, everywhere can see the slogan -- "Good habit comes from the constraint, which is the result of request.", "Leaving troubles to customer means bringing ourselves sorrow."...... These standards, has become the ruler and its criterion of xinqi. In the company, each production process is strictly controlled to prevent the omission; Every aspect of the detection is excellence, to ensure that products are 100% quality standards required. Strict quality management makes Xinqi been recognized by the authoritative quality institutions. Currently, the company has passed the TS16949 and ISO9001 system certification.
