Neodymium Iron Boron Magnet big disk with small holes

Price:	0.1 USD
Payment Terms:	T/T,L/C;Paypal
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Sintered NdFeB Magnet 48SH

Production Capacity: 800Tons/Year

Delivery Date: 10-25 days

Shape: Big disk

Composite: NdFeB Magnet

Surface treatment: Nickle

Grade: 48SH

Lead time: 15-20days

Means of Transport: Ocean,Land,Air;Express Way

Packing: in cartion

Application: Motors

Type: Permanent

Brand Name: Xinqi Magnet

Composition: Neodymium

Place of origin: Ningbo

1) This NdFeB magnet with small holes used in motor.
2)Size: D75*d5*15
3)Coating: Nickle
4) Grade: 48SH
5)Tolerance:+/-0.05

NdFeB magnet big disk with small holes, permanent motor magnet

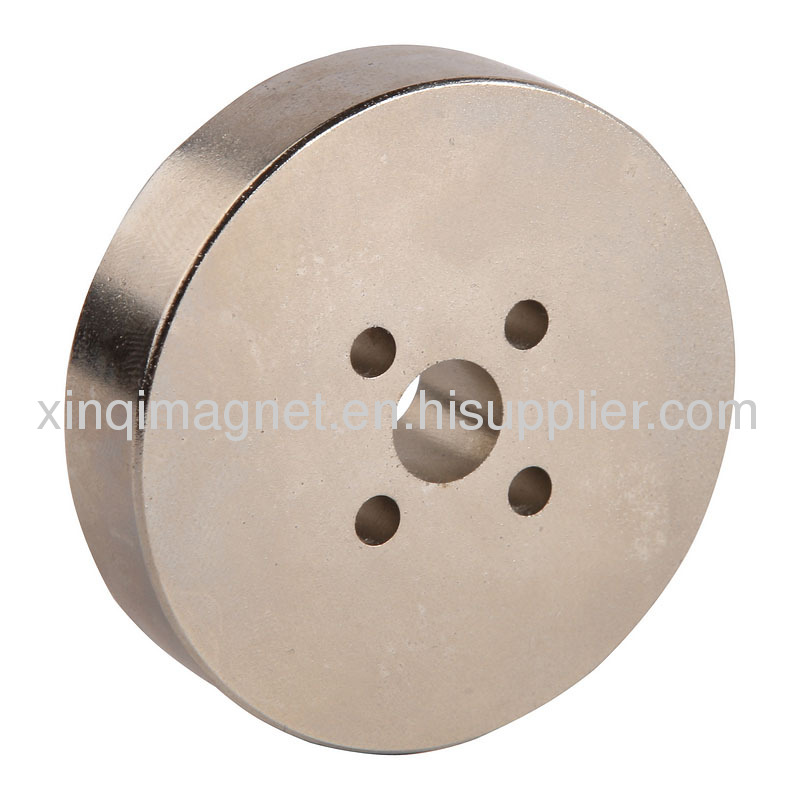

product picture:

more details:

Features:

1) NdFeB magnet big disk with small holes motor magnet
2) Size:D75*d5*15mm
3) Grade: 48SH
4) Coating: Nickle(≥15um), slat spray testing 48hours
5) Magnetized through thickness

Packing:
Inner packing: small white box,place plastic between each magnets
Outer packing: Carton with OPP bag

Properties:

Sintered Nd FeB magnetic properties
			(Hcb)		(Hcj)		(BH)max		Max Working
Grade	mT	kGs	kA/m	kOe	kA/m	kOe	kJ/m³	MGOe	Tempt(TW)℃
N35	1170-1220	11.7-12.2	≥868	≥10.9	≥955	≥12	263-287	33-36	80℃
N38	1220-1250	12.2-12.5	≥899	≥11.3			287-310	36-39
N40	1250-1280	12.5-12.8	≥907	≥11.4			302-326	38-41
N42	1280-1320	12.8-13.2	≥915	≥11.5			318-342	40-43
N45	1320-1380	13.2-13.8	≥923	≥11.6			342-366	43-46
N48	1380-1420	13.8-14.2	≥923	≥11.6			366-390	46-49
N50	1400-1450	14.0-14.5	≥796	≥10.0	≥876	≥11	382-406	48-51
N52	1430-1480	14.3-14.8	≥796	≥10.0	≥876	≥11	398-422	50-53
35M	1170-1220	11.7-12.2	≥868	≥10.9	≥1114	≥14	263-287	33-36	100℃
38M	1220-1250	12.2-12.5	≥899	≥11.3			287-310	36-39
40M	1250-1280	12.5-12.8	≥923	≥11.6			302-326	38-41
42M	1280-1320	12.8-13.2	≥955	≥12.0			318-342	40-43
45M	1320-1380	13.2-13.8	≥955	≥12.5			342-366	43-46
48M	1370-1430	13.7-14.3	≥1027	≥12.9			366-390	46-49
50M	1400-1450	14.0-14.5	≥1033	≥13.0			382-406	48-51
35H	1170-1220	11.7-12.2	≥868	≥10.9	≥1353	≥17	263-287	33-36	120℃
38H	1220-1250	12.2-12.5	≥899	≥11.3			287-310	36-39
40H	1250-1280	12.5-12.8	≥923	≥11.6			302-326	38-41
42H	1280-1320	12.8-13.2	≥955	≥12.0			318-342	40-43
45H	1320-1360	13.2-13.6	≥963	≥12.1			326-358	41-46
48H	1370-1430	13.7-14.3	≥995	≥12.5			366-390	46-49
35SH	1170-1220	11.7=12.2	≥876	≥11.0	≥1592	≥20	263-287	33-36	150℃
38SH	1220-1250	12.2=12.5	≥907	≥11.4			287-310	36-39
40SH	1250-1280	12.5=12.8	≥939	≥11.8			302-326	38-41
42SH	1280-1320	12.8=13.2	≥987	≥12.4			318-342	40-43
45SH	1320-1380	13.2=13.8	≥1003	≥12.6			342-366	43-46
28UH	1040-1080	10.4=10.8	≥764	≥9.6	≥1990	≥25	207-231	26-29	180℃
30UH	1080-1130	10.8=11.3	≥812	≥10.2			223-247	28-31
33UH	1130-1170	11.3=11.7	≥852	≥10.7			247-271	31-34
35UH	1170-1220	11.7=12.2	≥860	≥10.8			263-287	33-36
38UH	1220-1250	12.2=12.5	≥876	≥11.0			287-310	36-39
40UH	1250-1280	12.5=12.8	≥899	≥11.3			302-326	38-41
28EH	1040-1080	10.4=10.8	≥780	≥9.8	≥2388	≥30	207-231	26-29	200℃
30EH	1080-1130	10.8=11.3	≥812	≥10.2			223-247	28-31
33EH	1130-1170	11.3=11.7	≥876	≥11.0			247-271	31-34
35EH	1170-1220	11.7=12.2	≥876	≥11.0			263-287	33-36
38EH	1220-1250	12.2=12.5	≥899	≥11.3			287-310	36-39
28AH	1040-1080	10.4=10.8	≥787	≥9.9	≥2624	≥33	207-231	26-29	230℃
30AH	1080-1130	10.8=11.3	≥819	≥10.3			223-247	28-31
33AH	1130-1170	11.3=11.7	≥843	≥10.6			247-271	31-34

Quality insurance:

All our manufacturing procedures are operated well under ISO9001 and TS/16949
We get 4 appearance patents, 19 utility model patents, R&D 7 municipal new products.

HIGH-TECH ENTERPRISE IN NINGBO
NINGBO ENTERPRISE ENGINEERING TECHNOLOGY CENTER

NdFeB magnet big disk with small holes

Company Introduction

Founded in .2003
Main products:
NdFeB magnets, SmCo magnets , Alinico magnets, Ferrite magnets, Rubber magnets, Magnetic ,Apparatus
Capacity:2000-3000Tons Annual
