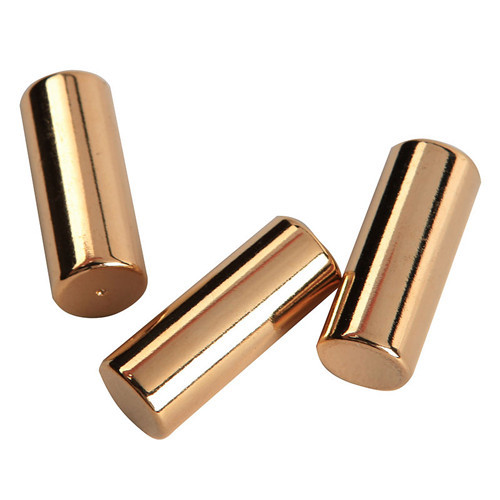

Cloden plating Permanent Neodymium cylinder magnet

Price:	0.01~15.0 USD
Payment Terms:	T/T,L/C;Paypal
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: N33-N52,M,H,SH,UH,EH

Production Capacity: 800Tons/Year

Delivery Date: 10-25 days

Type: Permanent

Brand Name: Xinqi Magnet

Composition: Neodymium

Shape: Cylinder

Place of origin: Ningbo

Certification: ISO/TS16949

packing: in cartion

Means of Transport: Ocean,Air;Express Way

Packing: box,carton,pallet

Application: Motor Magnet

Composite: NdFeB Magnet

Surface treatment: Golden

Model No: N33-N52,M,H,SH,UH,EH

Coating: Ni+Au

Coating thickness: 10-20 um

lead time: 15-20days

Grade: N33-N52, 33M-48M, 33H-48H, 30SH-45SH, 30UH-38UH and 30EH-35EH;

product name :Permanent NdFeB cylinder magnet

Magnet N-( N35, N38, N40, N42, N45, N48, N50),
Magnet M-(35M, 38M, 40M, 42M, 45M, 48M),
Magnet H-(35H, 38H, 40H, 42H, 45H),
Magnet SH-(30SH, 33SH, 35SH, 38SH, 40SH, 42SH),
Magnet UH-( 28UH, 30UH, 33UH, 35UH, 38UH),
Magnet EH-(28EH, 30EH, 30EH, 33EH, 35EH)
N33-N52,M,H,SH,UH,EH Permanent NdFeB cylinder magnet

1) Material: Sintered Neodymium-Iron-Boron;
2) Temperature: The max operation temp is up to 200 degree centigrade or 380 curie temperature;
3) Grade: N33-N52, 33M-48M, 33H-48H, 30SH-45SH, 30UH-38UH and 30EH-35EH;
4) Shape: Ring, block, disc, bar and so on;
5) Size: According to customers' request;
6) Coating: Ni, Zn, gold, copper, epoxy and so on;
7) Application: Sensors, motors, rotors, wind turbines, wind generators, loudspeakers, magnetic hooks, magnetic holder, filters automobiles and so on;

Properties:

Sintered Nd FeB magnetic properties
			(Hcb)		(Hcj)		(BH)max		Max Working
Grade	mT	kGs	kA/m	kOe	kA/m	kOe	kJ/m³	MGOe	Tempt(TW)℃
N35	1170-1220	11.7-12.2	≥868	≥10.9	≥955	≥12	263-287	33-36	80℃
N38	1220-1250	12.2-12.5	≥899	≥11.3			287-310	36-39
N40	1250-1280	12.5-12.8	≥907	≥11.4			302-326	38-41
N42	1280-1320	12.8-13.2	≥915	≥11.5			318-342	40-43
N45	1320-1380	13.2-13.8	≥923	≥11.6			342-366	43-46
N48	1380-1420	13.8-14.2	≥923	≥11.6			366-390	46-49
N50	1400-1450	14.0-14.5	≥796	≥10.0	≥876	≥11	382-406	48-51
N52	1430-1480	14.3-14.8	≥796	≥10.0	≥876	≥11	398-422	50-53
35M	1170-1220	11.7-12.2	≥868	≥10.9	≥1114	≥14	263-287	33-36	100℃
38M	1220-1250	12.2-12.5	≥899	≥11.3			287-310	36-39
40M	1250-1280	12.5-12.8	≥923	≥11.6			302-326	38-41
42M	1280-1320	12.8-13.2	≥955	≥12.0			318-342	40-43
45M	1320-1380	13.2-13.8	≥995	≥12.5			342-366	43-46
48M	1370-1430	13.7-14.3	≥1027	≥12.9			366-390	46-49
50M	1400-1450	14.0-14.5	≥1033	≥13.0			382-406	48-51
35H	1170-1220	11.7-12.2	≥868	≥10.9	≥1353	≥17	263-287	33-36	120℃
38H	1220-1250	12.2-12.5	≥899	≥11.3			287-310	36-39
40H	1250-1280	12.5-12.8	≥923	≥11.6			302-326	38-41
42H	1280-1320	12.8-13.2	≥955	≥12.0			318-342	40-43
45H	1320-1360	13.2-13.6	≥963	≥12.1			326-358	41-46
48H	1370-1430	13.7-14.3	≥995	≥12.5			366-390	46-49
35SH	1170-1220	11.7=12.2	≥876	≥11.0	≥1592	≥20	263-287	33-36	150℃
38SH	1220-1250	12.2=12.5	≥907	≥11.4			287-310	36-39
40SH	1250-1280	12.5=12.8	≥939	≥11.8			302-326	38-41
42SH	1280-1320	12.8=13.2	≥987	≥12.4			318-342	40-43
45SH	1320-1380	13.2=13.8	≥1003	≥12.6			342-366	43-46
28UH	1040-1080	10.4=10.8	≥764	≥9.6	≥1990	≥25	207-231	26-29	180℃
30UH	1080-1130	10.8=11.3	≥812	≥10.2			223-247	28-31
33UH	1130-1170	11.3=11.7	≥852	≥10.7			247-271	31-34
35UH	1170-1220	11.7=12.2	≥860	≥10.8			263-287	33-36
38UH	1220-1250	12.2=12.5	≥876	≥11.0			287-310	36-39
40UH	1250-1280	12.5=12.8	≥899	≥11.3			302-326	38-41
28EH	1040-1080	10.4=10.8	≥780	≥9.8	≥2388	≥30	207-231	26-29	200℃
30EH	1080-1130	10.8=11.3	≥812	≥10.2			223-247	28-31
33EH	1130-1170	11.3=11.7	≥876	≥11.0			247-271	31-34
35EH	1170-1220	11.7=12.2	≥876	≥11.0			263-287	33-36
38EH	1220-1250	12.2=12.5	≥899	≥11.3			287-310	36-39
28AH	1040-1080	10.4=10.8	≥787	≥9.9	≥2624	≥33	207-231	26-29	230℃
30AH	1080-1130	10.8=11.3	≥819	≥10.3			223-247	28-31
33AH	1130-1170	11.3=11.7	≥843	≥10.6			247-271	31-34

The Sintered Neodymium (NdFeB) magnet is widely used in wind generators, meters, sensors, aerospace, automotive, electronics, electro-acoustic, communications, instrumentation, medical equipment and other permanent magnetic field devices and equipment.
